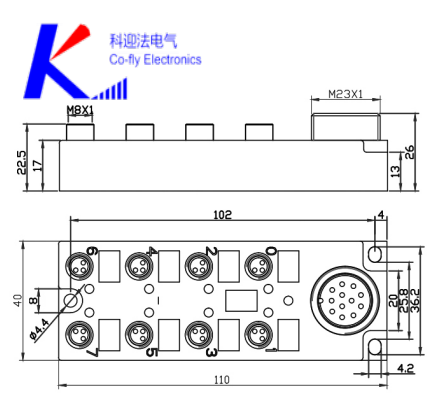

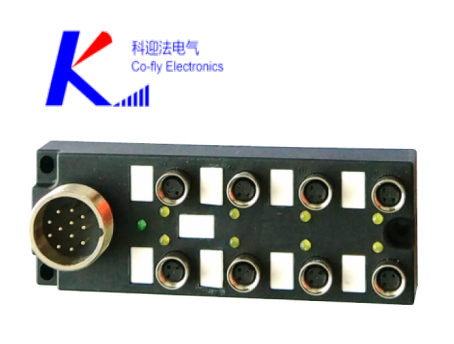

8 Ports M8 × 1 I/O Port Cable Junction Boxes—Split type with M23 12pin（Suitable for solenoid valves and passive sensors）

Product material and mechanical properties:

Protection level: IP67/68/69

Contact material: Copper alloy

Material contact surface: NIAU

Contact carrier material: AU

Connection type: Thread M8 * 1

Multi core wire cross-sectional area: /

Status display: /

Mechanical life: >500 cycle

Standard/regulation: IEC61076-2-101

Product electrical performance:

Total rated current: 12A

Rated voltage: 24VDC

Current transmission capacity of each I/O signal: 2A

Current load capacity of each slot: 4A

Impulse voltage: 1000V

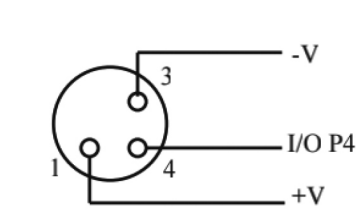

Number of digits: 3PIN

Contact resistance: ≤ 5m Ω

Insulation resistance ≥ 1000M Ω

Working temperature range: -25 ℃~+85 ℃
