M12 17pin Straight Female Solder Type Screw Type Field Installable Connector

M12 17pin Straight Female Solder Type Screw Type Field Installable Connector

INQUIRY

Basic Info.

Model NO.

KYF12K17ZT-NC(6-8)

Character

Moistureproof

Species

Plug

Production Process

Injection Molding

Shape

Round

Interface Type

DC/DC

Certification

Temperature Range

-20~+85 Degree

IP Rating

IP67

Connector Series

M12

Locking Type

Fix Screw

Mounting Type

Straight

Shielding

Available

Coupling Nut/Screw

Brass with Nickel Plated

3 / 4 / 5 / 6 / 8 / 12 / Pin

Connector Insert

PA+GF

Contact Resistance

<=8m Omega

Transport Package

PE Bag/Carton or According Customize Packing

Trademark

Co-Fly

Origin

Shanghai, China

HS Code

853690

Packaging & Delivery

Package Size

40.00cm * 25.00cm * 25.00cm

Package Gross Weight

0.200kg

Product Description

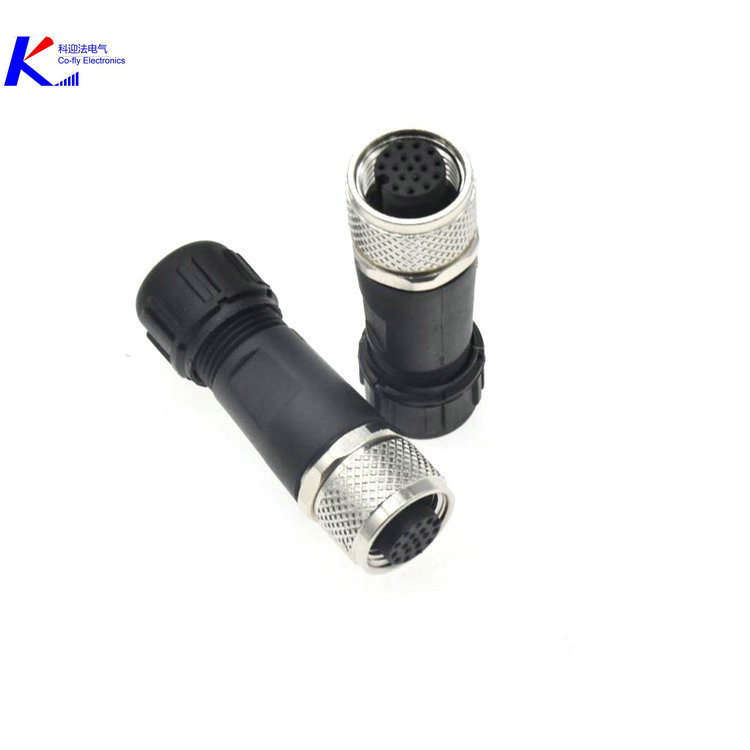

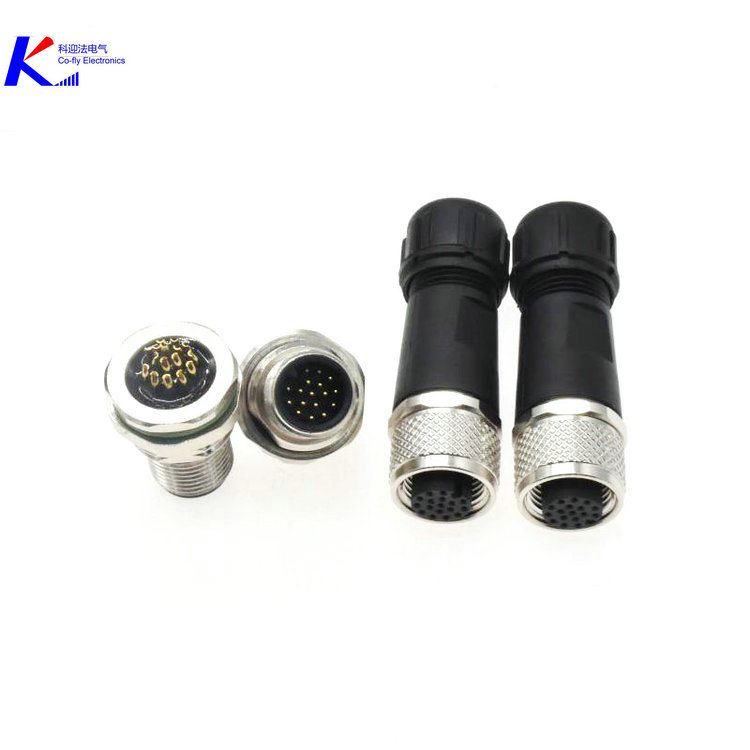

M12 17pin straight female solder type screw type field installable connector

Description of Waterproof M12 connector,IP67 M12 cable connector ,fix thread M12

Φ Waterproof M12 connector,fix screw with self-locking threaded joint,waterproof IP67 M12 cable connector.

Φ Protected from dust and water during immersion,resistance to many oils and chemical.

Φ Can be easily connected to proximity switches,photoelectric barries,flow moitoring devices and field bus components sensor devices and actuator devices.

Φ Satisfy all the requirements of sensor devices and actuator devices in automation technology.

Technical data of cable waterproof connector

Φ Standard :IEC 61076-2-101

Φ Coding : A,B,D

Φ Pins: 2~17 pin

Φ Ambient temperature:-20°C~+85°C

Φ Insulation resistance ≥ 100M Ω

Φ Degree of peotection : IP67 in locked condition

Cable/Connector specification

Φ Insert : PA+GF

Φ Contact:Copper Alloy with gold plating

Φ Overmold:TPU

Φ Cable Jacket:PVC or PUR

Φ Wire insulation:PVC

Φ Cable length:Option

M12 17pin Straight Female Solder Type Screw Type Field Installable Connector

1. Q: What is the necessary information needed for quotation?
   A:The series(M5/M8/M10/M12/M23),coding,male or female,pin number,cable length.

2. Q: What is the minimum order quantity(MOQ)?
   A:100 pcs or negotiatable.

3. Q: What do the certifications have?
   A: ISO9001:2008, ISO14001, CSA. IATF16949.

4. Q: What does Co-fly can provide for the product' certification?
   A: IP67, IP69, UL, CE and RoHS.

5. Q: Sample lead time?
   A: One week.

6. Q: Volume order lead time?
   A: 3-4 weeks.

7. Q: Do you provide inspection on the incoming materials before production and inspect the finished products shipment?
   A: Yes. We have Incoming material inspection, In process quality check and Outgoing goods quality check.

8. Q: How do you ship the finished product?
   A: Based on the customer request.

9. Q: What kind of delivery terms or trade terms is available?
   A: T/T, FOB ,EXW, FOB are all available.
