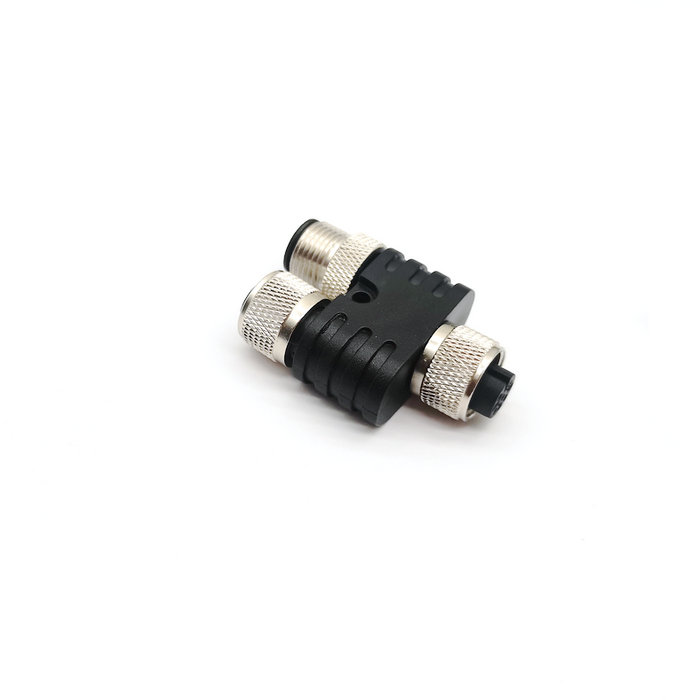

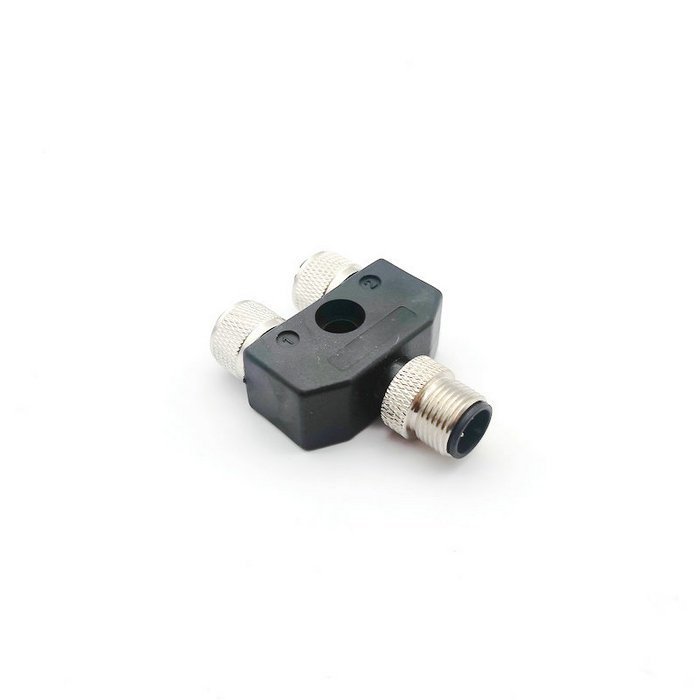

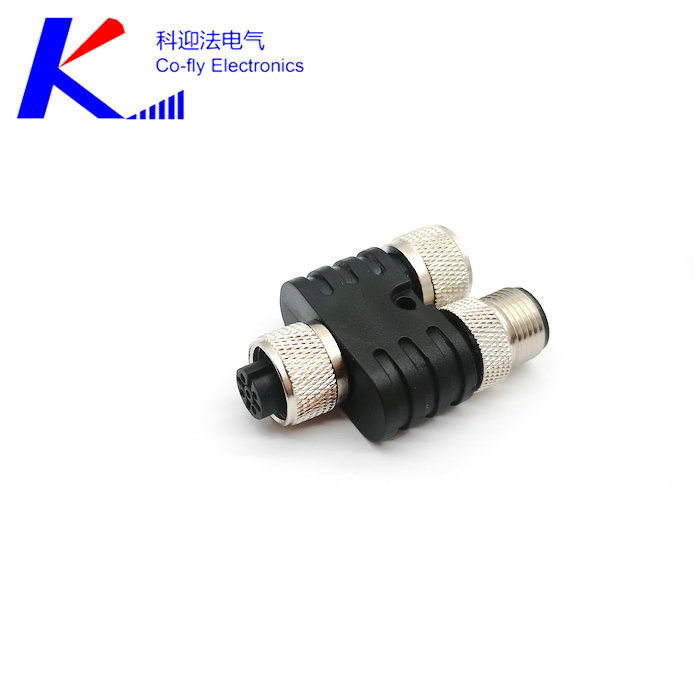

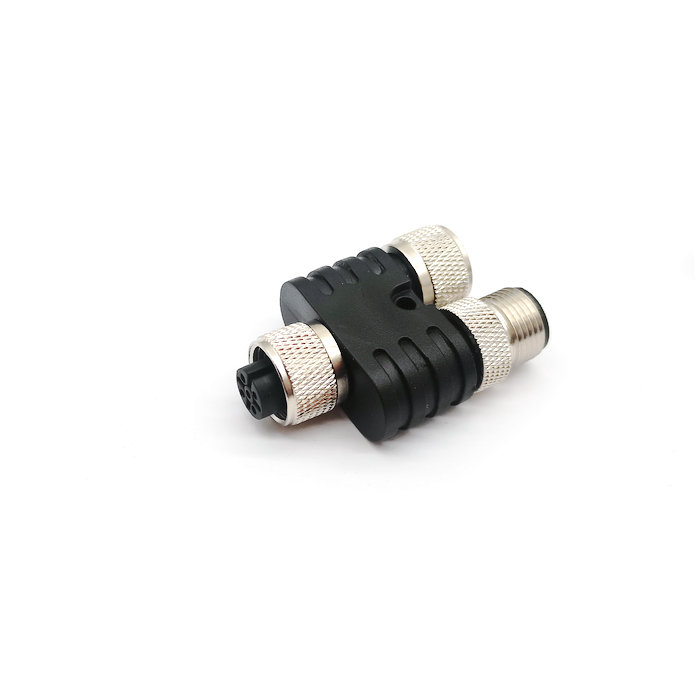

M12 to M12 Y-type 1 Male to 2 Female Adapter Shunting Circuit

Specifications

• Connector Type- M12 to M8 T Splitter Connector
• Contact Type- Male (M12) to Two Female (M8)
• Number of Pins- 4 (M12), 3 (M8)
• Housing Material- Polypropylene
• Contact Material- Gold Plated, Brass (Male) Bronze (Female)
• Coupling Nut Material- Nickel Plated Brass
• Circuit Type- Shunting
• Rated Voltage- 50V AC / 60V DC
• Rated Current- 3 Amps
• Fixing Hole Diameter- 3.2 mm
• Temperature Range- -25 C to 70 C (-13 F to 158 F)
• Protection Class- IP 67 (Total protection from dust and temporary immersion in water - max depth 1 meter for 30 min)
