M12 Mold Cable

M12 D-Code 4pin Male Angled to Neutrik RJ45 Male Connector, Molded Profinet 4X22AWG 5 Million Drag Chain PUR Cable

M12 D-Code 4pin Male Angled to Neutrik RJ45 Male Connector, Molded Profinet 4X22AWG 5 Million Drag Chain PUR Cable

INQUIRY

Basic Info.

Model NO.

D-KYF12J4ZT-L1.5M-KYFRJ45

Certification

RoHS, CE, ISO9001

Application

UHF, FPC, Microwave, Automobile

Contact Resistance

<=8m Omega;

Contact Material

Copper Alloy

Surface Treatment

Gold Plating

Housing

Copper Alloy

Cable Material

PVC/PUR/TPU

Temperature Range

-20~+85 Degree

IP Rating

IP67

Connector Series

Type

M8 Molded Cable Connectors

Mounting Type

Straight

Shielding

Available

Coupling Nut/Screw

Brass with Nickel Plated

Cable Length

Optional

Contact

4 Pins

Transport Package

PE Bag/Carton or According Customize Packing

Trademark

Co-Fly

Origin

Shanghai, China

HS Code

853690

Packaging & Delivery

Package Size

40.00cm * 25.00cm * 25.00cm

Package Gross Weight

0.200kg

Product Description

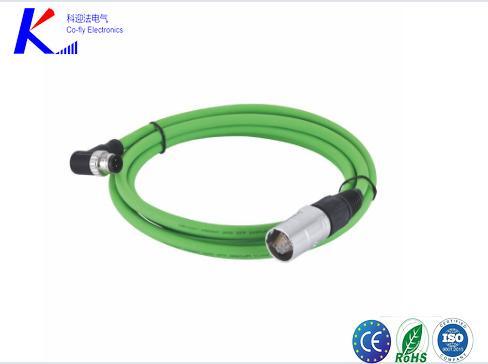

M12 D-Code 4Pin male angled to Neutrik RJ45 male connector, molded PROFINET 4x22AWG 5 million drag chain PUR cable

Description of M12 panel connector,IP67 M12 cable connector ,fix thread M12

Φ Panel field M12 connector,fix screw with self-locking threaded joint,waterproof IP67 M12 cable connector.

Φ Can be easily connected to proximity switches,photoelectric barries,flow moitoring devices and field bus components sensor devices and actuator devices.

Φ Satisfy all the requirements of sensor devices and actuator devices in automation technology.

Technical data of cable waterproof connector

Φ Standard :IEC 61076-2-101

Φ Coding : A,B,D

Φ Pins: 2~17 pin

Φ Ambient temperature:-20°C~+85°C

Φ Insulation resistance ≥ 100M Ω

Φ Degree of peotection : IP67 in locked condition

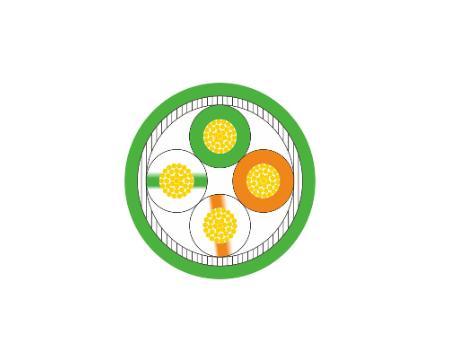

Cable/Connector specification

Φ Insert : PA+GF

Φ Contact:Copper Alloy with gold plating

Φ Overmold:TPU

Φ Cable Jacket:PVC or PUR

Φ Wire insulation:PVC

Φ Cable length:Option

M12 D-Code 4pin Male Angled to Neutrik RJ45 Male Connector, Molded Profinet 4X22AWG 5 Million Drag Chain PUR Cable

Since 2004, Co-fly has been specialized in and focused on R&D, production, marketing and service of waterproof connectors, sensors (M12 connector, M8 connector, M16 connector, M23 connector, M5, etc.), special custom type connector, I/O bus module (M12 hub, M8), one-to-two T-shape and Y-shape splitter, sensor of car tank, wiring harness of new energy automobile, pressure sensors and industrial automation.

Typical projects, include Shenzhen airport, Shanghai Pudong airport, Shanghai metro, Wuhan metro, Xi'an metro subway, the expo project and so on.  Our company has served more than 4000 multinational group and listed companies since its establishment, trust by many years of cooperation is valuable, and also it's the power source to redouble our effort. We do not dare to idle.

1. Q: What is the necessary information needed for quotation?
   A:The series(M5/M8/M10/M12/M23),coding,male or female,pin number,cable length.

2. Q: What is the minimum order quantity(MOQ)?
   A:100 pcs or negotiatable.

3. Q: What do the certifications have?
   A: ISO9001:2008, ISO14001, CSA. IATF16949.

4. Q: What does Co-fly can provide for the product' certification?
   A: IP67, IP69, UL, CE and RoHS.

5. Q: Sample lead time?
   A: One week.

6. Q: Volume order lead time?
   A: 3-4 weeks.

7. Q: Do you provide inspection on the incoming materials before production and inspect the finished products shipment?
   A: Yes. We have Incoming material inspection, In process quality check and Outgoing goods quality check.

8. Q: How do you ship the finished product?
   A: Based on the customer request.

9. Q: What kind of delivery terms or trade terms is available?
   A: T/T, FOB ,EXW, FOB are all available.
