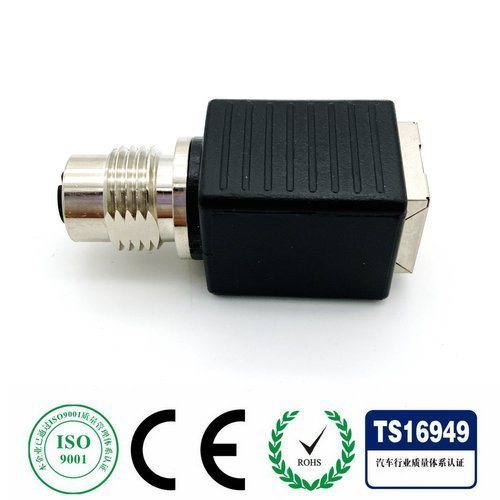

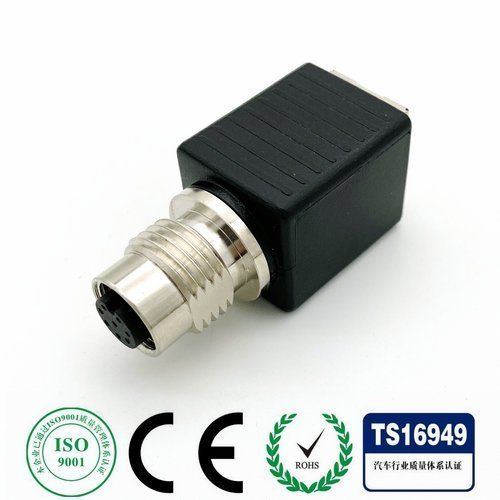

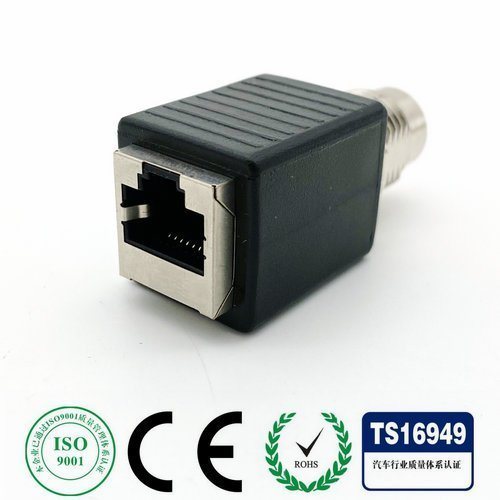

M12 Female IP67 Straight Connector with Female RJ45 Electrical Connector

M12 Female IP67 Straight Connector with Female RJ45 Electrical Connector

INQUIRY

Basic Info.

Application

UHF, FPC, Microwave, Automobile

Contact Resistance

8m Omega;

Contact Material

Copper

Surface Treatment

Nickel Plating

Housing

Copper Alloy

Temperature Range

-20~+85 Degree

IP Rating

IP67

Connector Series

M12

Locking Type

Fix Screw

Coupling Nut/Screw

Brass with Nickel Plated

3 / 4 / 5 / 6 / 8 Pin

Connector Insert

PA+GF

Transport Package

PE Bag/Carton or According Customize Packing

Trademark

Co-Fly

Origin

Shanghai, China

HS Code

853690

Product Description

M12 Male IP67 Straight Connector with Female RJ45 Electrical Connector

Description of Waterproof M12 connector with RJ45,IP67 M12 cable connector ,

Φ Waterproof M12 connector,fix screw with self-locking threaded joint,waterproof IP67 M12 cable connector.

Φ Protected from dust and water during immersion,resistance to many oils and chemical.

Φ Can be easily connected to proximity switches,photoelectric barries,flow moitoring devices and field bus components sensor devices and actuator devices.

Φ Satisfy all the requirements of sensor devices and actuator devices in automation technology.

Technical data for M12 Female IP67 Straight Connector with Female RJ45 Electrical Connector

Technical data of cable waterproof connector

Φ Standard :IEC 61076-2-101

Φ Coding : A,B,D

Φ Pins: 2~17 pin

Φ Ambient temperature:-20°C~+85°C

Φ Insulation resistance ≥ 100M Ω

Φ Degree of peotection : IP67 in locked condition

Specification for M12 Female IP67 Straight Connector with Female RJ45 Electrical Connector

Cable/Connector specification

Φ Insert : PA+GF

Φ Contact:Copper Alloy with gold plating

Φ Overmold:TPU

Φ Cable Jacket:PVC or PUR

Φ Wire insulation:PVC

Φ Cable length:Option

M12 Female IP67 Straight Connector with Female RJ45 Electrical Connector
1. Q: What is the necessary information needed for quotation?
   A:The series(M5/M8/M10/M12/M23),coding,male or female,pin number,cable length.

2. Q: What is the minimum order quantity(MOQ)?
   A:100 pcs or negotiatable.

3. Q: What do the certifications have?
   A: ISO9001:2008, ISO14001, CSA. IATF16949.

4. Q: What does Co-fly can provide for the product' certification?
   A: IP67, IP69, UL, CE and RoHS.

5. Q: Sample lead time?
   A: One week.

6. Q: Volume order lead time?
   A: 3-4 weeks.

7. Q: Do you provide inspection on the incoming materials before production and inspect the finished products shipment?
   A: Yes. We have Incoming material inspection, In process quality check and Outgoing goods quality check.

8. Q: How do you ship the finished product?
   A: Based on the customer request.

9. Q: What kind of delivery terms or trade terms is available?
   A: T/T, FOB ,EXW, FOB are all available.
