Liquid Cooled - Single Core Straight Head Quick Connector for Pure Electric Vehicles and Hybrid Electric Vehicles

Liquid Cooled - Single Core Straight Head Quick Connector for Pure Electric Vehicles and Hybrid Electric Vehicles

INQUIRY

Basic Info.

Model NO.

KYF-LC-SC

Certification

RoHS, CE, ISO9001

Application

UHF, FPC, Microwave, Automobile, Energy

Contact Resistance

<=8m Omega;

Contact Material

Copper Alloy

Surface Treatment

Gold Plating

Housing

Copper Alloy

Cable Material

PVC/PUR/TPU

Temperature Range

-20~+85 Degree

IP Rating

IP67

Mounting Type

Straight

Shielding

Available

Coupling Nut/Screw

Brass with Nickel Plated

Cable Length

Optional

Locking Type

Fix Screw

Transport Package

PE Bag/Carton or According Customize Packing

Trademark

Co-Fly

Origin

Shanghai, China

HS Code

853690

Packaging & Delivery

Package Size

40.00cm * 25.00cm * 25.00cm

Package Gross Weight

0.200kg

Product Description

Product Introduction

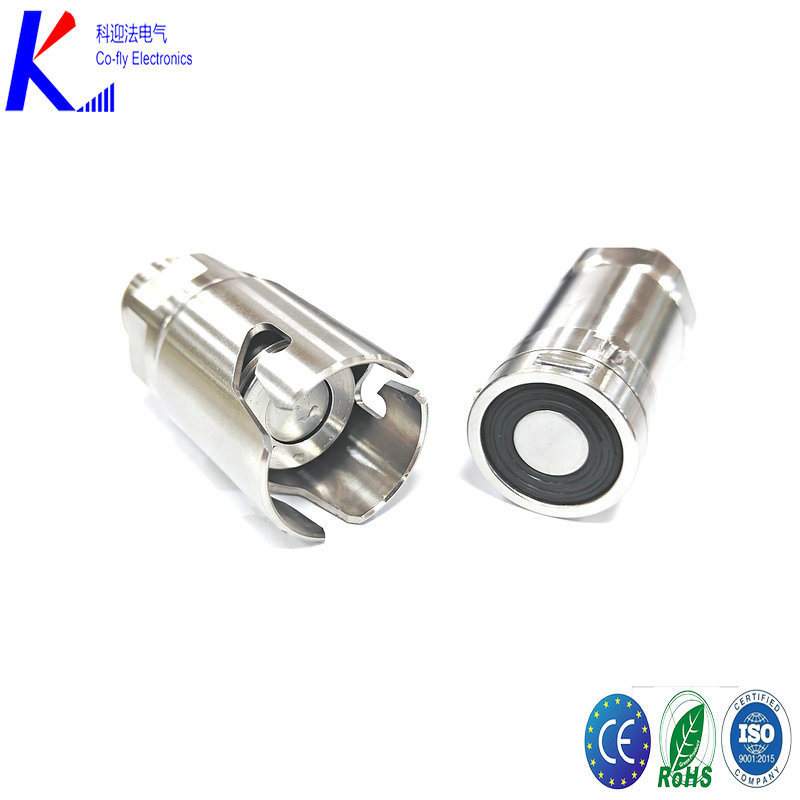

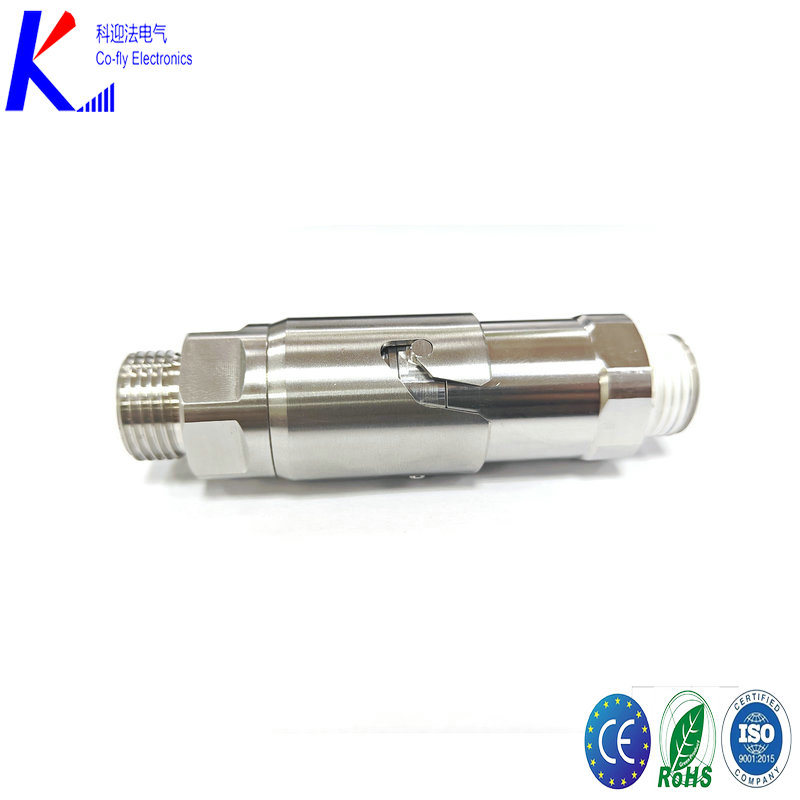

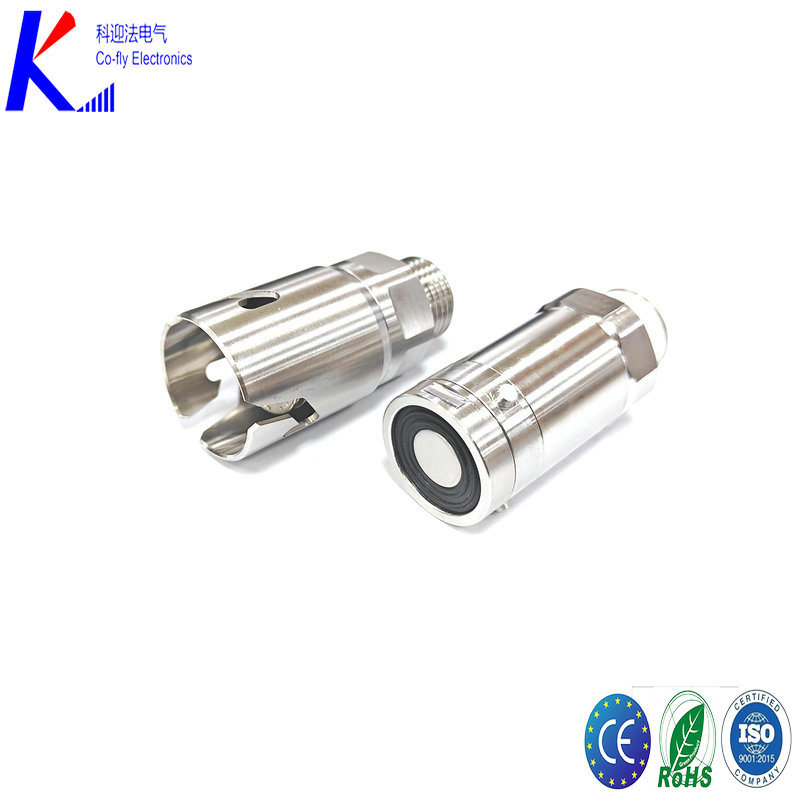

This product is a straight head quick insertion liquid cooled connector;
The product structure is compact and suitable for use in the chassis battery of electric vehicles;
Adopting a self opening structure with opposite insertion, strong overcurrent capacity, short compression stroke, and compact structure;
The liquid cooled quick change connector has low current resistance and strong overcurrent capability;
Strong pressure resistance;
The function of self opening and self closing during insertion and disconnection.
The advantages of convenient and fast connection and replacement.

Technical parameters:
Current carrying liquid: coolant (mixture of water and ethylene glycol)
Working temperature: -40 ºC~+125 ºC
Relative humidity: 95% (at 30 ºC)
Rated pressure: 80Kpa
Flow resistance: ≤ 0.19bar@20L /Min
Minimum cross-sectional area of flow: > 70mm ²
Compression resistance: 750Kpa
Protection level: IP68
Mechanical life: 10000 times
Vibration: Meet the requirements of GB/T 38031-2020 standard
Impact: Meet the requirements of GB/T 38031-2020 standard

Liquid Cooled - Single Core Straight Head Quick Connector for Pure Electric Vehicles and Hybrid Electric Vehicles
