Solar Simulator

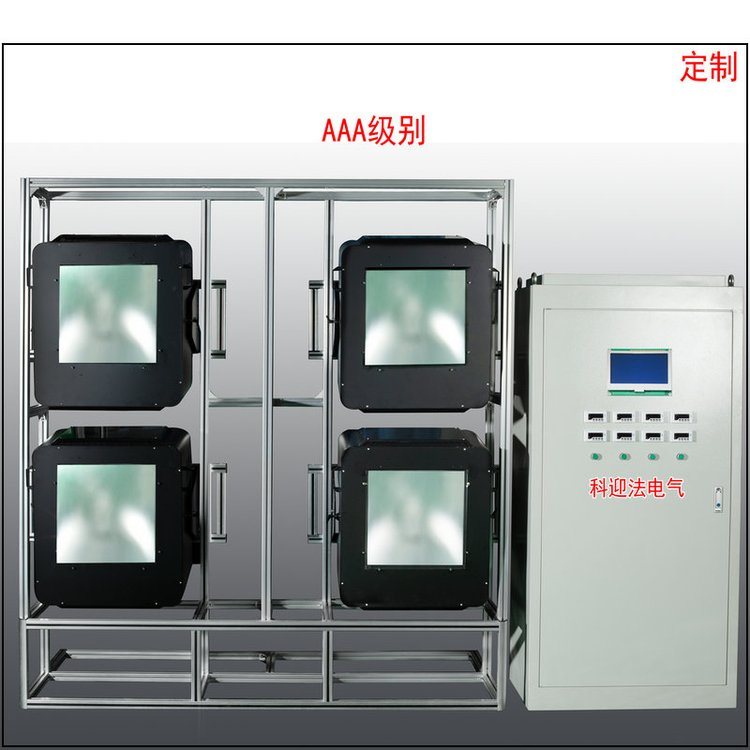

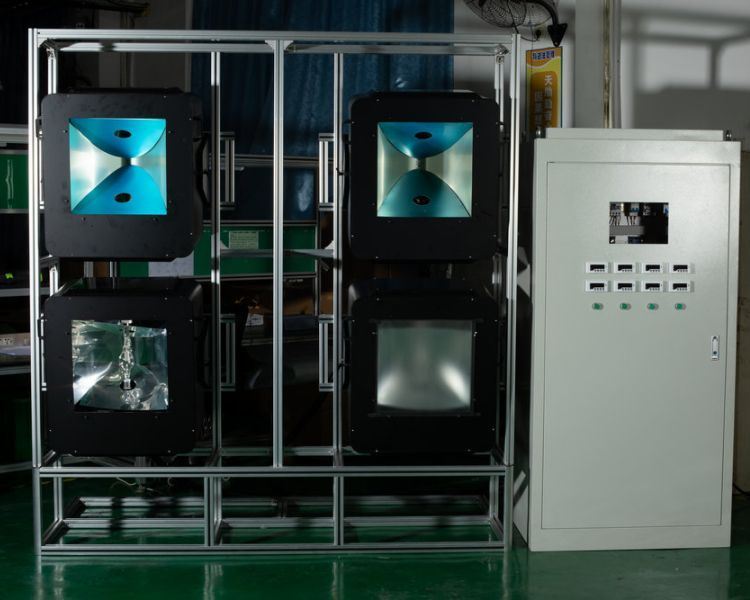

3A Level Solar Photovoltaic Light Simulator/UV Simulator

3A Level Solar Photovoltaic Light Simulator/UV Simulator

INQUIRY

Basic Info.

Model NO.

KYF-SOLAR

Light Type

Solar

Color Temperature

Warm White

Power

≥30W

Technics

Painted Matte

Illumination Time

1000h

Cell Type

Charging Time (H)

Power

Usage

Test

IP Rating

Certification

CE, RoHS

Voltage

220V

With Light Source

Transport Package

Wood Carton

Specification

2.2M*2.0M*1.0M

Trademark

CO FLY

Origin

Shanghai China

HS Code

8543709990

Production Capacity

500000/Year

Packaging & Delivery

Package Size

40.00cm * 25.00cm * 25.00cm

Package Gross Weight

4.000kg

Product Description

Solar simulator, the light source equipment which is independent researched & produced by Shanghai Co-fly electronics Co.,Ltd.The equipment is included central control machine,matlab software and data acquisition system.We can customize the equipment as your actual request with reliable quality,fast delivery&24 hours after-sales service.
Solar simulator can be provided the environment close to natural light which is not affected by environment,climate & time,it can realize 24 hours uninterrupted light source and weathering test for a short time.In addition,the equipment can be fulfilled the requirement of the maximum power of IC 61215-2:2021,hot spot durability test of IEC 63126:2020 &stability test of IEC 61853-2:2016.

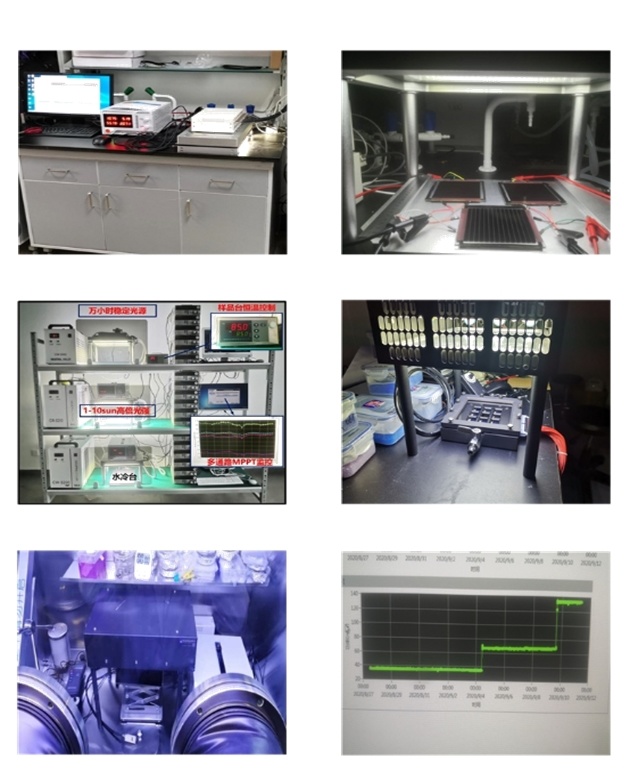

Solar simulator can be widely used in the test of solar battery,dye-sensitized cell,perovskite battery,photothermal conversion,photoelectric material,biochemistry,photocatalytic degradation,skin cosmetics,aerospace,scientific research unit,automotive full-spectrum sunlight simulation system,etc.The product can be met the standard of IEC 60904-9,ASTM E 927 A-level spectral matching,class A or B irradiance spatial inhomogeneity,Class A Temporal Instability.

Main techical parameter:
1,Output the sunlight:700-1300Wm2 continuously adjustable.
2,Direction of light:vertically up/down,horizontal left/right.
3,Radiation area: 100mm*100mm-2600mm*2800mm
4,Internationl standard for light matching/Irradiance Spatial Uniformity/temporal instability: JIS C 8912,ASTM E927-05,IEC 60904-9 2007 ED2
5,Collimation angle: Less than or equal to 2.5 degrees half angle
6,Averaging technique:Double fly eye lens combination
7,Lamp life: Average 2000 hours
8,Shutter control time:0.1S-9990 Hours.
9,Security lock:When the light source box cover is opened, the light source will be automatically turn off.
10,Temperature sensor and self-locking system ensure the operator's safety.
11,Fan power-off delay function,equipment cooling system delay power-off system,no need to stay manually,save time at work&improve equipment's life.

Product Features:
1,High stablity,durability,Ozone-free lamp.
2,Excellent light distribution,uniformity & stability.
3,Solid body,easy to operate & install.
4,light matching,Irradiation unevenness,Irradiation time instability can be customized as your request.
5,Can be measured 6 parameters:Voc,Isc,FF,Imax,Vmax,Pmax,Rs,Rsh

Process flow:
Product design--Drawing approval--Purchasing parts--Material inspection--Equipment assembly
--Technical debugging--Performance correction--QC test--Aging test--Appearance QC-Package
